How Does a Motor Soft Starter Bypass Contactor Work?

Starting a big motor without a controller is like jolting a heavy cart forward from rest it’s jarring, noisy, and hard on the equipment. In electrical terms, that jolt is inrush current, a spike that punishes motors, gears, and the power grid alike. A motor soft starter prevents this by gradually raising the voltage, resulting in a gentle, controlled acceleration. But once the motor reaches full speed, how does the starter avoid becoming a drain on efficiency? That’s the job of a smart piece of hardware known as the bypass contactor.

The Problem with Starting Hard (and Why You Want It Soft)

To understand the bypass mechanism, it helps to understand the two phases of motor operation. During the first few seconds of startup, a standard motor can pull six to eight times its normal running current. This stress shortens the lifespan of mechanical components like bearings and couplings, and it can cause annoying voltage dips in your facility the lights flicker, and sensitive equipment might reset.

A motor soft starter eliminates this headache by using semiconductors (specifically thyristors or SCRs) to “chop” the voltage waveform. Instead of a sudden surge, the motor receives a gradual, controlled ramp of power. The machine spins up smoothly, and the electrical system stays happy. However, those power semiconductors generate heat. If they stayed in the circuit forever, you’d need a massive heat sink and a noisy cooling fan running 24/7 just to waste electricity.

Enter the Bypass Contactor: The Efficiency Switch

This is where the bypass contactor earns its keep. Think of the soft starter as the vehicle’s first gear great for getting moving without stalling. The bypass contactor is the shift into highway cruising gear.
Here is the exact sequence of operation that happens in the blink of an eye inside a standard motor soft starter enclosure:

1. Ramp Up Phase: You press the start button. The soft starter’s control board fires the SCRs. The motor begins to rotate smoothly, drawing a manageable amount of current.
2. Up-to-Speed Detection: The soft starter monitors the motor’s back EMF or current draw. Once it detects that the motor has reached its nominal operating speed (usually within 10 to 30 seconds), it knows the hard work is done.
3. The Handoff: The control board sends a small signal to energize a coil in the bypass contactor.
4. Mechanical Closure: You’ll hear a distinct “clunk” from inside the panel. This is the sound of heavy-duty mechanical contacts slamming shut. These contacts are wired in parallel with the SCRs.
5. Full Conduction: Electricity is fundamentally lazy; it follows the path of least resistance. Once those mechanical contacts close, current stops flowing through the restrictive semiconductors and flows directly through the copper bar of the contactor.
6. Idle Mode: The SCRs turn off and cool down. The motor runs at full efficiency with virtually no energy wasted in the starting electronics.

Why This Process Matters for Your Equipment and Electric Bill

If you are evaluating a motor soft starter for a pump, fan, conveyor, or compressor, the presence of a bypass contactor is a critical feature that separates industrial-grade units from basic starters. Here is what that “clunk” actually means for the buyer or operator:

• Reduced Heat and Energy Waste: Without a bypass, the SCRs continue to drop a small voltage (usually about 1.5 to 2 volts) even at full speed. Multiply that voltage drop by hundreds of amps, and you get significant heat buildup. That heat requires ventilation and air conditioning to remove, which is a double penalty on your energy bill. The bypass contactor eliminates that loss entirely.
• Extended Electronics Lifespan: Semiconductors are tough, but they don’t love being hot for ten hours a day. By taking the SCRs offline during the run cycle, you dramatically increase the service life of the most expensive part of the soft starter.
• Silent Running (Literally): Many soft starters without bypass require a fan to cool the thyristors. Once the bypass contactor engages, the fan often shuts off. This makes the panel quieter and prevents the fan from sucking dust and debris into the enclosure.

When to Look for Integrated vs. External Bypass

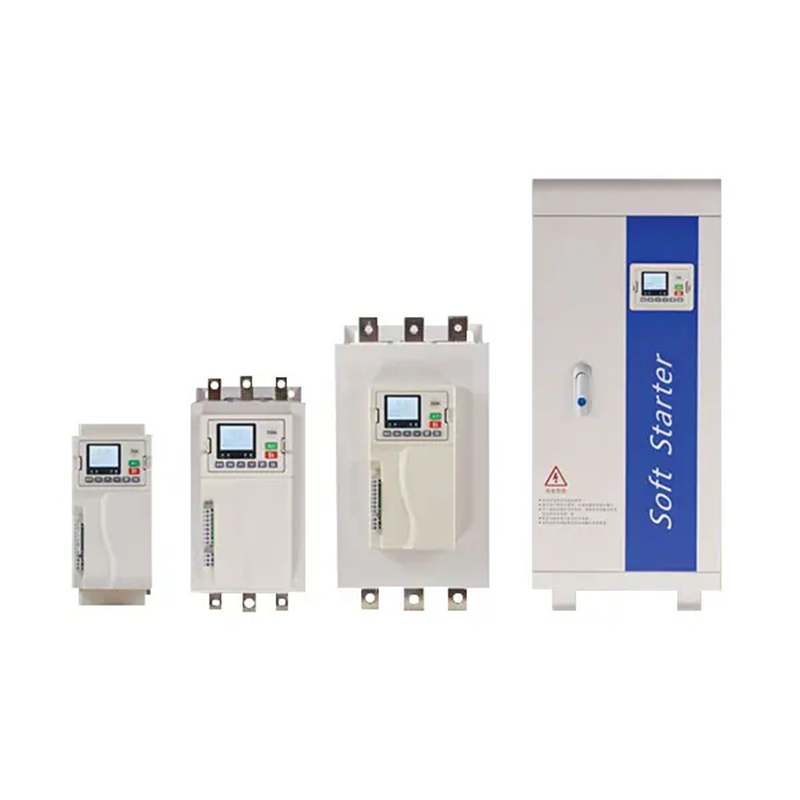

When shopping for equipment, you’ll find two common configurations. Some compact units have the bypass contactor built right into the same housing as the soft starter this saves space and simplifies wiring. In larger applications (hundreds of horsepower), the bypass contactor is often a separate, massive device mounted next to the soft starter.

From a practical standpoint, the difference in installation time and long-term reliability between a bypassed unit and a non-bypassed unit is substantial. A soft starter that stays in-circuit constantly will run hot, requiring more clearance around the panel and potentially tripping overloads on a warm summer day. A bypassed unit runs cool and efficient.

How to Spot a Working Bypass

Not sure if the bypass contactor is engaging? Give it 15 seconds after startup and listen for the contactor’s audible clunk. No sound, or a starter enclosure that stays hot hours later, suggests a stuck contactor or a unit that simply doesn’t include bypass functionality.

The concept is refreshingly simple: finesse for the start, brute force for the run. That seamless handoff is what defines a reliable, energy-smart motor soft starter. Appreciating that internal transition explains why investing a little extra in an integrated bypass yields long-term value through cooler cabinets and fewer maintenance headaches.
