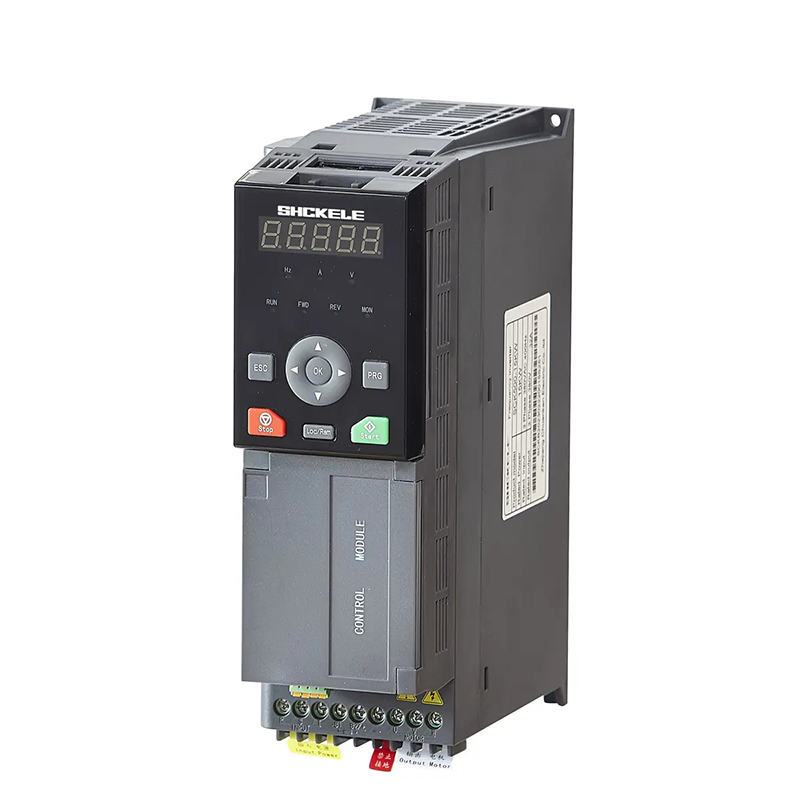

Frequency Inverter Definition
A frequency inverter (also referred to as a Variable Frequency Drive “VFD”) is an electronic device that is used to control AC motor’s speed, torque and direction of rotation by controlling both the frequency and the voltage supplied to the motor. This technology has continued to evolve and is now used on an extensive basis across multiple industries including, manufacturing, HVAC, agriculture and energy management.
Examples are controlling the rotational speed of a conveyor or changing the rotational speed of a cooling fan. Anyone considering purchasing a China VFD frequency inverter can realize both efficiency and flexibility while still paying a very reasonable price.
Frequency Inverter Operation
A frequency inverter converts AC power going into the frequency inverter to DC power utilizing a rectifier circuit and converts DC power back to AC power utilizing an inverter circuit to provide the frequency and voltage that is desired. This method combines flexibility in controlling a motor’s speed with better efficiency when consuming energy.
The inverter has an internal control that monitors and adjusts outputs in order to keep a proper working condition. Below is an overview of the methods of operation.
- Rectification: Means converting incoming ac power into dc power with diodes or thyristors.
- DC Bus: Stabilizes converted power using capacitors or inductors.
- Inverter Circuit: Means converting dc back into ac with the required frequency by using insulated gate bipolar transistors (IGBTs).
- Control Algorithm: Monitors motor feedback to assure optimum operation per the user settings.
What is the Difference Between a VSD and a Frequency Inverter?
Whereas the variable speed drive (VSD) and frequency inverter are terms that are often used interchangeably; they do have some subtle differences. The VSD covers a wider category of devices that will control the speed at which an electric motor runs. However, a frequency inverter is only used to change the speed of the motors by changing the frequency and voltage of that electric motor.
VSDs can refer to all types of frequency inverters but may not apply only to frequency inverters.
Selecting an Appropriate Frequency Inverter
When choosing an appropriate frequency inverter, there are a few major things to consider for compatibility and performance:
- Motor Specifications: Determine what voltages (voltage ratings above), current (amps), and power (watts or horsepower) are necessary to match to a appropriate inverter.
- Application Requirements: Determine the unit load type or if constant torque or variable torque is required.
- Environmental Conditions: Will the inverter be operating in extreme temperature conditions, very dusty, or high humidity?
- Budget and Brand: Balancing cost and being reliable; common options are Variable Frequency Inverters (VFD) produced by globally recognized manufacturers.
Advantages of a Frequency Inverter
When you invest in frequency inverters, there are many benefits of purchasing them, including:
- Energy Savings: Reduce the amount of energy consumed operating at proper speeds.
- Motor Protection: Avoid damaging your motors due to overloads or volt fluctuations.
- Smoother Operation: Allow for a smooth running motor with improved overall productivity.
- Reduced Operating Costs: Save on the operating costs associated with using less energy and the longer life of a motor.
Commonly Asked Questions
What is a frequency inverter?
A frequency inverter is a device which is capable of controlling the speed and performance of an AC motor by varying the frequency and voltage supplied to that AC motor. It is beneficially used for many types of applications where there will be differences between the input and output frequencies and voltages, such as manufacturing facilities, water treatment plants, agricultural applications, etc.
How does the inverter control the frequency?
A frequency inverter is designed to convert the incoming AC power to DC and then convert it back to AC with a new desired frequency and voltage to provide the user with precise control of the speed of an AC motor.
Is a Variable Speed Drive the same thing as a frequency inverter?
Although every frequency inverter may be considered to be a Variable Speed Drive (VSD), not every VSD is a VSD – VSD is a broader term than a frequency inverter and only indicates the ability of a VSD to vary the speed of an AC motor by manipulating the frequency and voltage supplied to that AC motor.
How to choose an appropriate frequency inverter?
The basic considerations when choosing an inverter include the following factors: motor Type and Specifications; Application Requirements; Environmental conditions; Budget. This will help you to make an informed decision on which inverter will work best for you based on quality and reliability, such as seen with price VFDs from manufacturers in China.
All types of frequency inverters can improve energy efficiency and precision motor control, so it is critical for long-time success to choose the best inverter for your needs.
We encourage you to contact us so that we may help you determine the best frequency inverter recommendation based on your needs, environment, and budget.
To summarize, frequency inverters provide factory managers with the functionality, efficiency, and cost savings to effectively increase profitability through optimized industrial and commercial operations by providing various frequency inverters. Understanding the purpose of frequency inverters and selecting the specific type for your needs will allow you to take full advantage of the many benefits associated with them.
