When you need to control a large motor whether for a pump, fan, conveyor, or compressor a soft starter control cabinet offers a ready-to-install solution that saves time and reduces complexity. Instead of sourcing individual components and building an enclosure on-site, you get a pre-wired, factory-tested assembly that integrates the soft starter, bypass contactors, circuit protection, and control wiring into one unit. This guide covers what to look for, where these cabinets make sense, and how they simplify motor control projects.
What Is a Soft Starter Control Cabinet?

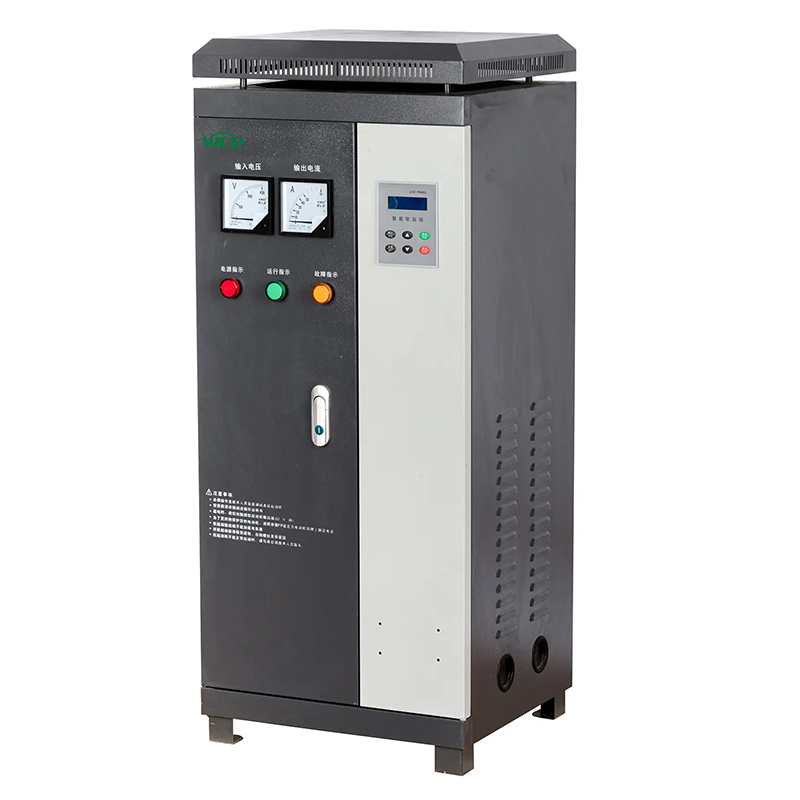

A soft starter control cabinet is exactly what the name suggests: a soft starter mounted inside an industrial enclosure with all the supporting components needed for safe, reliable motor operation. The soft starter itself gradually increases voltage during startup, limiting inrush current and reducing mechanical stress on both the motor and driven equipment. By packaging it with isolation switches, overload protection, and often a bypass system, manufacturers provide a turnkey solution. For buyers, this means less engineering time, fewer procurement headaches, and faster installation.
Why Choose a Pre-Enclosed Solution?
There are practical reasons engineers and facility managers opt for a soft starter control cabinet instead of building their own.
Simplified Installation
A pre-assembled cabinet arrives with internal wiring completed. Instead of coordinating multiple components and spending hours on panel layout, electricians mount the cabinet, connect incoming power and motor leads, and move on. This is especially valuable on projects with tight timelines.
Consistent Quality
When components are integrated by a manufacturer, the design is tested as a system. Thermal management, component spacing, and wiring are optimized. This reduces field errors that can lead to overheating or premature failure.
Space Efficiency
A well-designed soft starter control cabinet typically occupies less floor or wall space than a field-built alternative, which matters in crowded mechanical rooms.
Compliance and Safety
Factory-built assemblies carry certifications that simplify site acceptance. A pre-engineered cabinet arrives with the necessary ratings, reducing inspection delays.
Key Components Inside
Most soft starter control cabinets include:
●Soft starter: Controls motor acceleration
●Bypass contactors: Allow the motor to run through a mechanical path after startup, reducing heat and energy loss
●Circuit protection: Fuses or breakers sized for the application
●Isolation switch: Enables safe lockout/tagout
●Control transformer: Provides low-voltage power
●Terminal blocks: Simplify field wiring
Some cabinets also include PLC interfaces or communication modules for remote monitoring.
Where These Cabinets Are Used
These cabinets are common in applications where motors run continuously or startup control is critical:
●Water and wastewater: Pump stations, lift stations, treatment plants
●HVAC: Large air handlers, chillers, cooling tower fans
●Material handling: Conveyor systems, crushers
●Industrial manufacturing: Mixers, grinders, extruders
●Mining and aggregates: Conveyors, pumps, ventilation fans
In each setting, the combination of controlled startup and a rugged, pre-wired enclosure addresses both operational and installation needs.
What to Consider When Selecting
Start with motor specifications. Horsepower, voltage, and full-load amperage determine the soft starter size. Next, consider the enclosure type. Indoor applications may require only basic protection, while outdoor or washdown environments demand higher ratings.
Think about communication needs. Many modern soft starters offer fieldbus options. If your facility uses a central control system, ensure the cabinet includes the appropriate interfaces.
Finally, consider whether you need a bypass. For motors that run continuously, a bypass configuration reduces energy loss and extends component life.
Common Questions Buyers Ask
Can I mount a soft starter in my own enclosure?
Yes, but a pre-engineered cabinet saves time and reduces risk, especially for larger projects.
What if I need modifications?
Many manufacturers offer customization different enclosure sizes, added components, or specific communication protocols.
How long do these cabinets last?
With proper installation and environmental protection, a well-built soft starter control cabinet can operate for decades.
Summarize
A soft starter control cabinet is more than just a soft starter in a box. It’s a complete motor control solution that simplifies procurement, installation, and long-term maintenance. For engineers managing new construction or retrofit projects, it represents a reliable, time-saving alternative to field-built assemblies. By understanding your motor requirements, environmental conditions, and control needs, you can select a cabinet that delivers smooth starts, efficient running, and years of dependable service.
