How to Choose the Right Bypass Soft Starter for Your Motor

A bypass soft starter is a key component of an electric motors operation in many applications. The use of a bypass soft starter instead of a traditional way of starting a motor can help reduce mechanical stress and inrush current when starting a motor. If you need to upgrade or install a new motor, it will be very helpful to know how to pick the right bypass soft starter. This article provides a guide to some of the most important questions and considerations to help you make an informed decision.

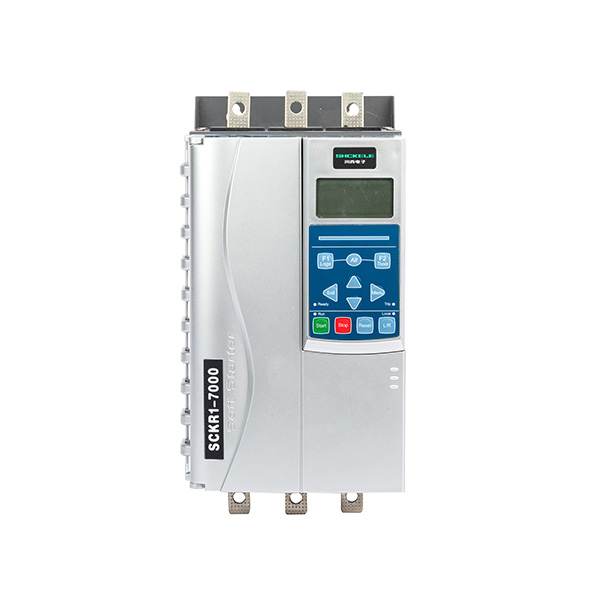

What is a Bypass Soft Starter?

A bypass soft starter is an electronic device used to regulate the start and stop process of very large electric machinery. The use of solid-state technology during start-up of the motor substantially reduces the mechanical and electrical stress on the two components, improving life expectancy. After the motor attains a set speed, the bypass allows for an immediate and complete connection of the motor to the electrical supply, resulting in a much lower energy loss and providing an efficient operation.

What Factors Should I Consider When Choosing a Bypass Soft Starter?

When selecting a bypass soft starter, several factors must be taken into account:

1. Motor Size and TypeFind the rated power for your motor in either horsepower (HP) or kilowatts (KW) before selecting a soft starter that suits the type and size of motor you need.

2. Voltage RatingEnsure the voltage rating of your soft start matches the motor voltage requirements to prevent damage to either part.

3. Control FeaturesSeek out features that allow users greater control over their equipment through adjustable torque settings (torque limiters), ramp up & down timers, or digital control interfaces to facilitate easier programming.

4. Environmental ConditionsThe operating environment is a factor you need to evaluate. The soft starter will have to endure harsh conditions if the motor runs under those conditions (eg: high humidity or dust environment).

How Do I Calculate the Right Size Bypass Soft Starter for My Motor?

To properly size a bypass soft starter, look up the motor nameplate data to find the (full load current) FLC. Choose a soft starter with an FLC rating that equals (or is slightly greater than) the amount given for the motor in order to provide the best possible performance. RULE OF THUMB: Always refer to manufacturer guidelines and consult their sizing charts to help you in sizing.

Bypass Soft Starter vs VFD: Which is Better for My Motor Application?

The choice of a bypass soft starter versus a variable frequency drive (VFD) will be greatly influenced by both the specific requirements of your application. Generally speaking, bypass soft starters are the most economical solution for applications where the most important consideration is reducing starting current, but do not require variable speed control. On the other hand, a VFD will provide more details of control over speed and torque and is recommended for processes where fine-tuned adjustments must be made. Assess your operational requirements in order to evaluate which choice is appropriate for your application.

What Protection Features Should I Look for in a Bypass Soft Starter?

To guarantee the longevity of your motor and soft starter; you should look for key protective features such as:

1. Overcurrent Protection: Safeguards against excess current that could damage the motor.

2. Overvoltage and Undervoltage Protection: Protects the system from voltage surges and drops.

3. Phase Loss Protection: Prevents operation under unbalanced conditions, which can severely affect motor performance.

Conclusion

To improve your equipment’s life span and increase its performance, choose the correct bypass soft starter for your motor. By taking into account the following criteria; Size, Voltage Rating, Control Options, and Protection Features of your motor, you will be able to make the right choice for your operation. By knowing your requirements before selecting a bypass soft starter or considering a VFD, you will be able to have greater reliability and improve the efficiency of your motor applications.
