For Corporations Working With Electric Motor Applications, It’s Crucial That They Have A Good Knowledge Base About Motor Soft Starters. A Motor Soft Starter, Developed By Using Power Electronics, Microprocessors And Modern Control Concepts, Is Advanced Device That Allows You To Start Your Electric Motors Smoothly.
This Article Will Explain What A Motor Soft Starter Is, The Advantages Its Can Provide, How To Wire One Up And How A Motor Soft Starter Works.

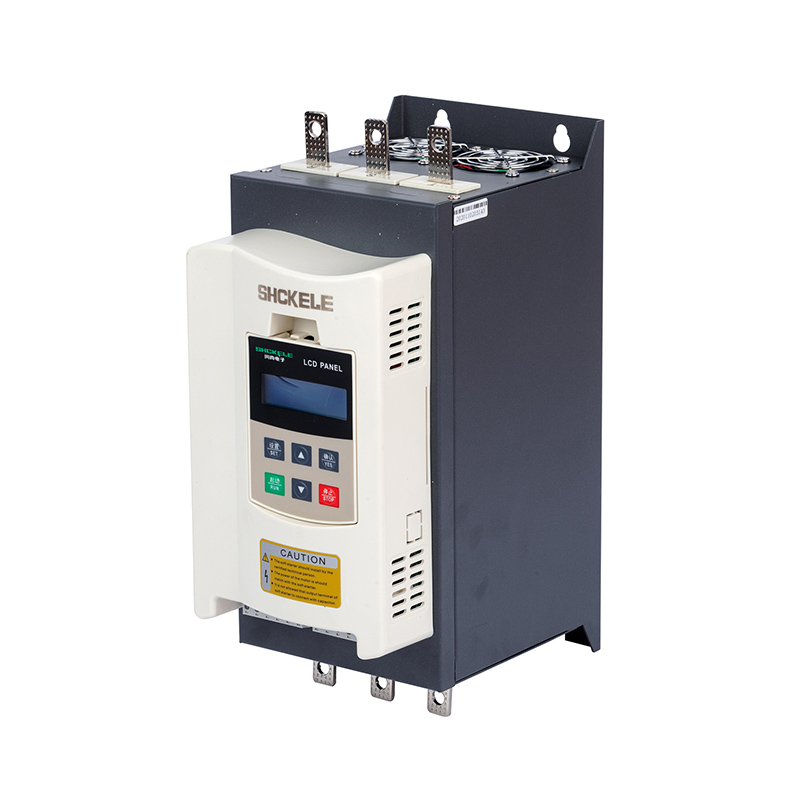

What Is a Motor Soft Starter?
A motor soft starter is an electronic instrument that controls the rate at which AC motors accelerate and decelerate. Since it provides a gradual acceleration/deceleration to the AC motor, it also reduces the inrush current to the motor and decreases the mechanical and electrical stress placed on mechanical components. The soft starter typically operates from a main circuit voltage of approximately AC380V (+10%~-25%) in a current range of 22A and 560A; thus, they are extensively used in industrial applications.
Benefits of Using a Motor Soft Starter
The benefits of implementing a motor soft starter include:
The use of a soft starter lowers the current when a motor starts, reducing the electrical stress on the motor and preventing power surges from occurring by starting with a voltage ranging between 30% and 70% of Ue.
Soft starters increase the longevity of equipment by reducing mechanical wear due to shocks on start-up and during shut-down.
- Functions made better by controlling how they work: Many features allow for more flexible acceleration/deceleration in terms of ramp time (soft start 2~60 sec and soft stop 0~60 sec) which improves product performance overall.
- Energy Efficiency: Reduced wasteful energy usage during the startup phases means that customers will pay lower electricity bills.
How Does a Motor Soft Starter Work? 3 Key Stages Explained
A motor soft starter operates in three key stages:
During initial activation, the soft start device applies electrical power to the motor exponentially. It first applies a reduced level of power in order to limit the current draw at startup.
The device will gradually increase the voltage that will supply power to the motor as it ramps up to operational speed at a user configurable period of time.
Running Mode: The Soft Starter is design for a one-time pre-defined setting to allow continuous operation, while the soft starter is in run mode it will remain on unless the next controlled stop function is requested.
Motor Soft Starter vs VFD: What’s the Difference?
Electric motors can be controlled by an electric motor as both a soft starter and a variable frequency drive (VFD), although they each work in a different way. The purpose of a soft starter is to smooth out the starting and stopping of an electric motor, while the VFD allows for speed control of an electric motor through the manipulation of frequency and voltage.
How to Choose the Right Soft Starter for Your Motor
When selecting a motor soft starter, consider the following:
Whether you have a three-phase or single-phase motor affects whether or not you require one; thus determining the type of motor you have will help identify which would work best for your application.
- Application Requirements: Evaluate the specific start-up torque and acceleration requirements for your application, referencing 50Hz/60Hz frequencies with a maximum variation of ±2%.
- Look for features such as an RS485 serial communication option for centralized control, and a fan included in the device to help maintain system temperature.
Wiring a Motor Soft Starter
To wire a motor soft starter, the soft starter must be installed between the motor and power supply, following the manufacturer’s installation and wiring instructions, and be grounded. Also, all applicable local electrical codes must be adhered to for safety and performance.
Today, motor soft starters are an integral part of modern industrial applications offering performance, efficiency, and extended life of equipment. Understanding these devices will increase the performance and efficiency of your operations and extend the life of your motor applications.
To summarize, a motor soft starter is a method for controlling motor start-up, providing benefits such as less stress on the machine, better efficiency, and longer life of the equipment and motor. Knowing the benefits of using a motor soft starter and how they work will help you choose the right product for your application.
